Reaktor Virtual MusicianTutorial

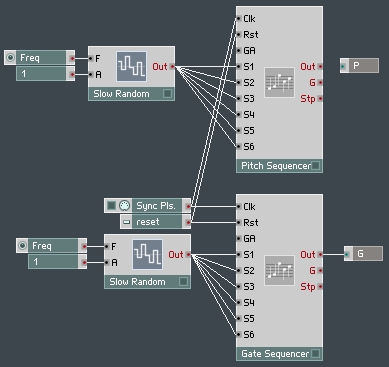

1. Copy and Paste the 'Gate' section of the virtual musician

2. Delete 1 of the 'Sync Clocks' and 1 of the 'Button's'

3. Connect the remaining 'Sync Clock' to the 'Clk' Inputs on Both of the Sequencers

4. Connect the remaining 'Button' to the 'Rst' Inputs on Both of the Sequencers

5. Rename a 'Send' to 'P' and Disconect it

6. Rename a 'Sequencer' to 'Pitch Sequencer'

We will now add the stuff inbetween the Pitch 'Sequencer' and the 'Send' called 'P'

6. Create a 'Sample & Hold', a 'Constant' of 128, a 'Multiply' and an 'A/E'

7. Connect the Output of the 'Sample & Hold' and the 'Constant' to the Inputs of the 'Multiply'

8. Connect the Output of the 'Multiply' to the Input of the 'A/E'

9. Create a 'Quantize' and 2 'Seperator's

10. Connect the Output of the 'A/E' to the 'in' Input of the 'Quantize'

11. Create a 'Control' for the 'St' Input of the 'Quantize' with a 'max' of 8, a 'min' of 0 and a 'step size' of 1

12. Connect the 'Out' Output of the 'Quantize' to the 'in' Input of the 'Seperator'

13. Create a 'Control' for the 'Thld' Input of the 'Seperator' with a 'max' of 126 and a 'min' of 1 and Rename it to 'Low'

14. Connect the 'Hi' Output of this 'Seperator' to the 'in' Input of the 2'nd 'Seperator'

15. Create a 'Control' for the 'Thld' Input with a 'max' of 127 and a 'min' of 2

18. Connect the 'Lo' Output to the 'Send' called 'P'

ONE MORE THING!

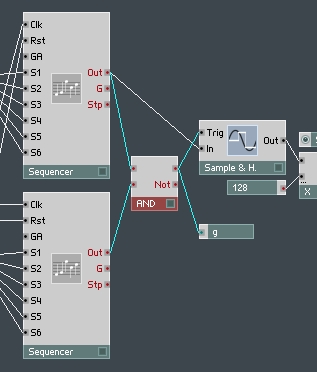

19. Create a 'Logic And' and put it where shown in the picture below

You have just added the 'Pitch' section of the Virtual Musician. We now have to modify the synth.
